Engineered for
Reliability.
Designed for
Continuity.
Watech combines advanced mechanical, electrical and digital technologies to deliver maximum efficiency, safety and long-term performance in every condition.
Technology
Safety
& Monitoring
Built to Last

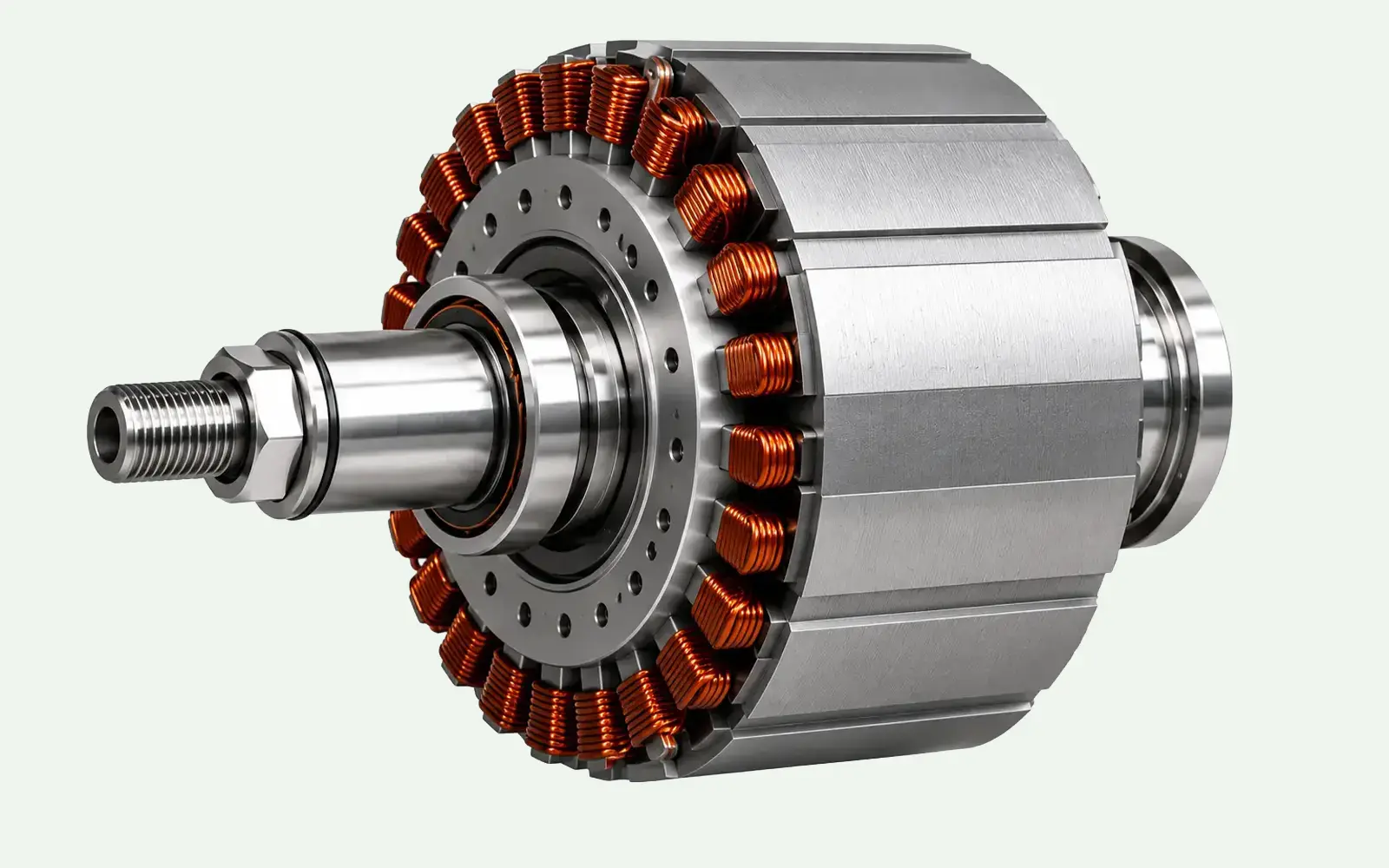

Direct-Drive PMG Alternator
Gearless permanent magnet generator delivers high efficiency, low vibration and minimal maintenance.
No gearbox

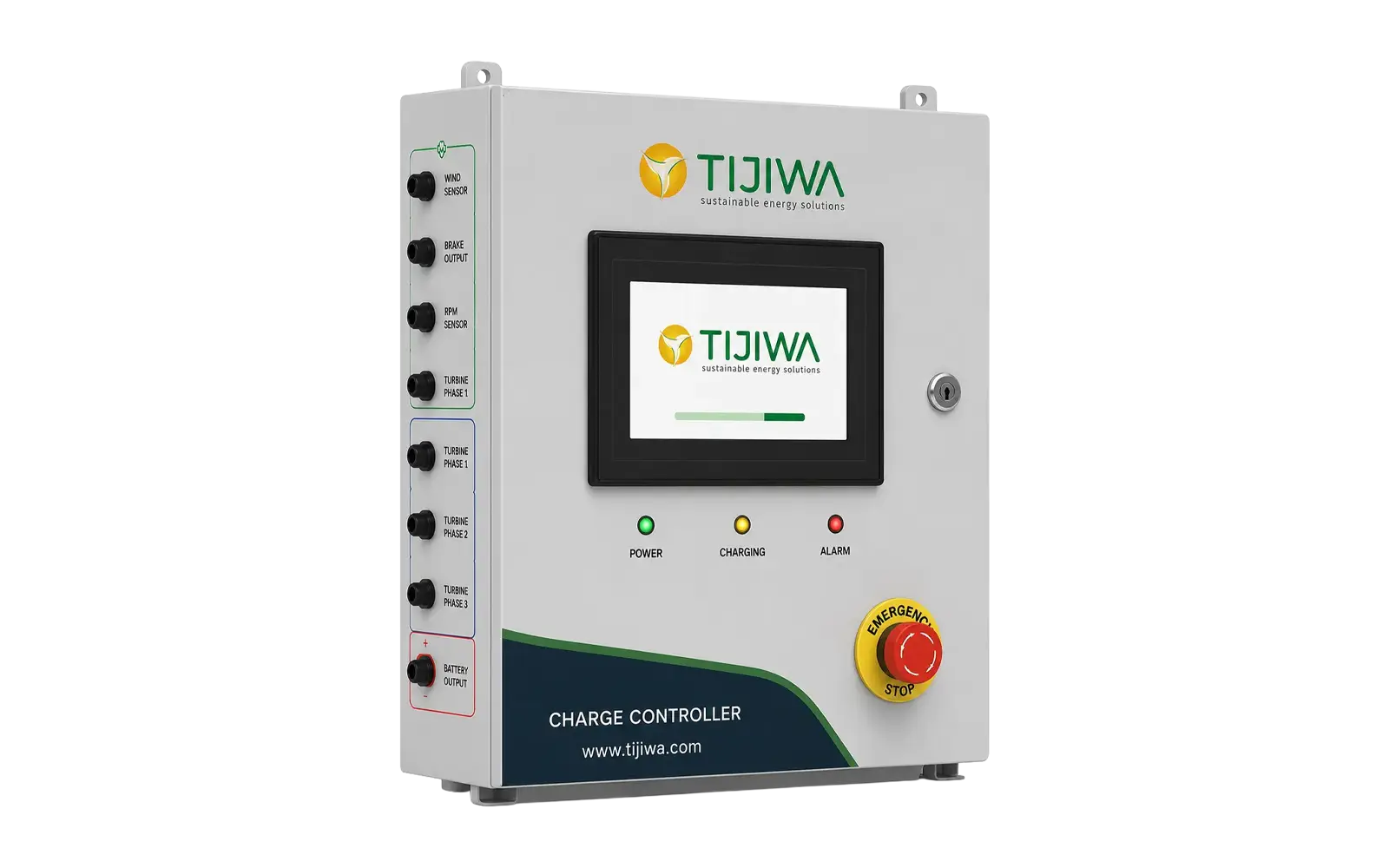

Smart Power Electronics
Advanced control electronics manage production, braking, protection and system communication in real time.

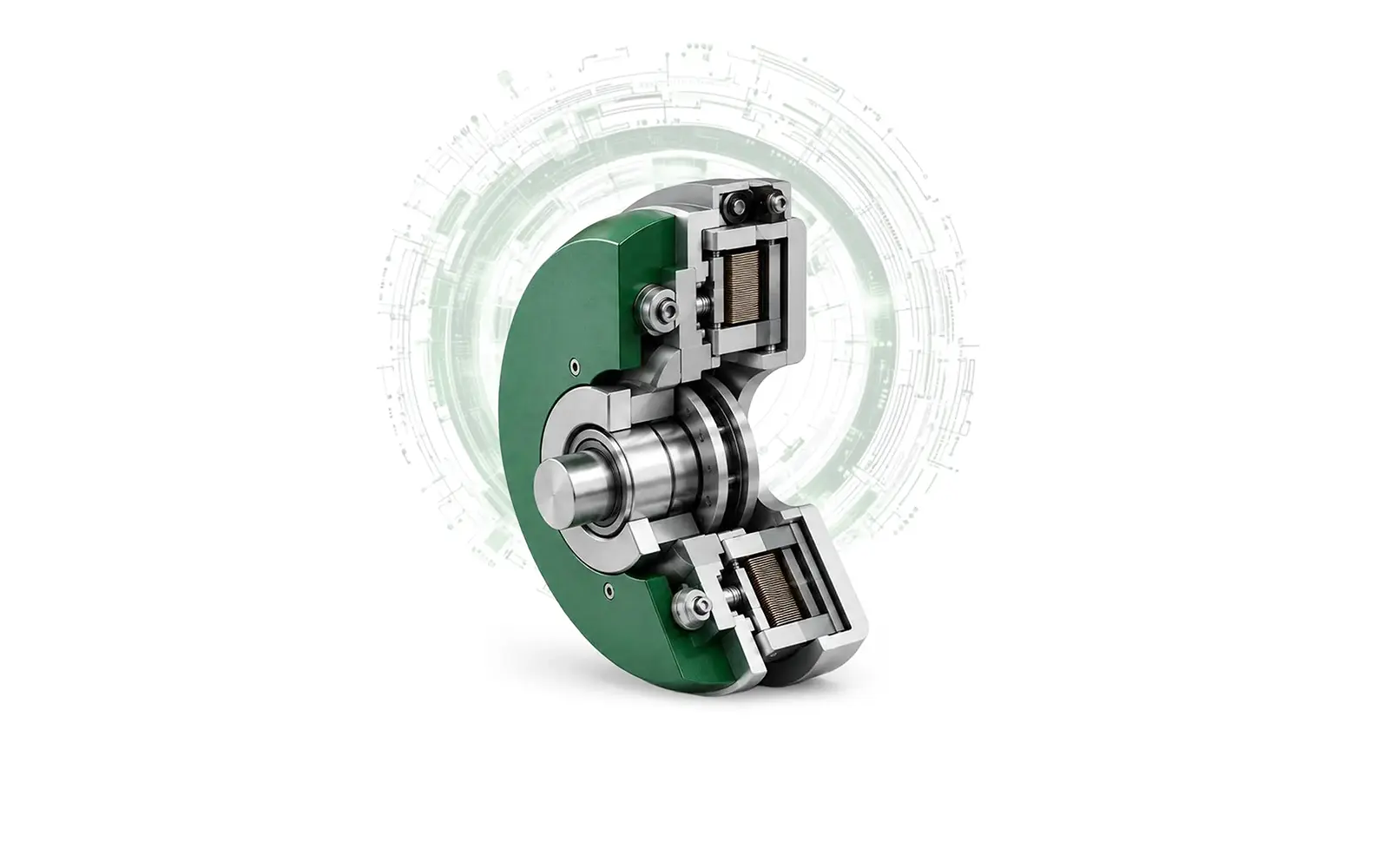

Multi-Layer Brake System
Electromagnetic and mechanical brakes work together to protect the turbine in all wind conditions.

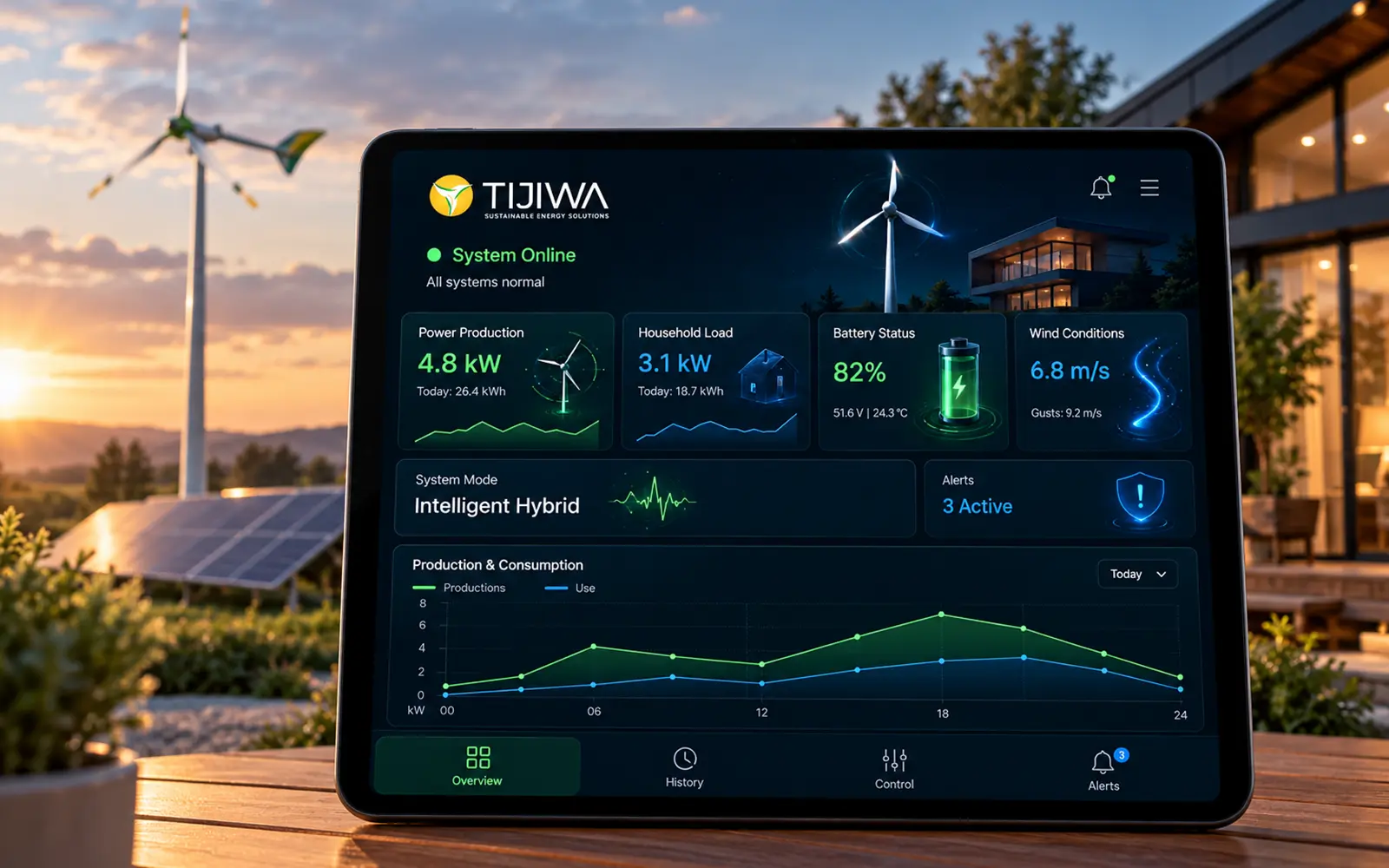

Remote Monitoring & Diagnostics
Track performance, receive alerts and access remote diagnostics from anywhere.
The braking system automatically adapts to wind speed and operating data to kepp the turbine and your system safe.
0 – 12 m/s
Normal Operation
Turbine operates normally and generates power efficiently.
≈13 m/s
Electromagnetic Braking
As wind speed approaches 13 m/s, the electromagnetic brake is gradually engaged to control rotor speed and limit output.
≈14 – 15 m/s
High Wind Protection
At around 14–15 m/s, the system enters high wind protection mode.
>15 m/s
Mechanical Brake
In critical conditions, the mechanical disc brake stops the turbine completely and puts the system in safe mode.
MANUAL EMERGENCY STOP
Independent manual stop allows authorized users to shut down the turbine safely at any time.
The Turbine That Listens to Your Battery.
Watech and the Battery Management System (BMS) communicate continuously. The turbine adapts its charging behaviour based on the battery's real-time condition and the limits defined by the BMS.
TURBINE
CONTROLLER
PACK
it listens to the battery and acts accordingly.
Always Aware. Always Protected.

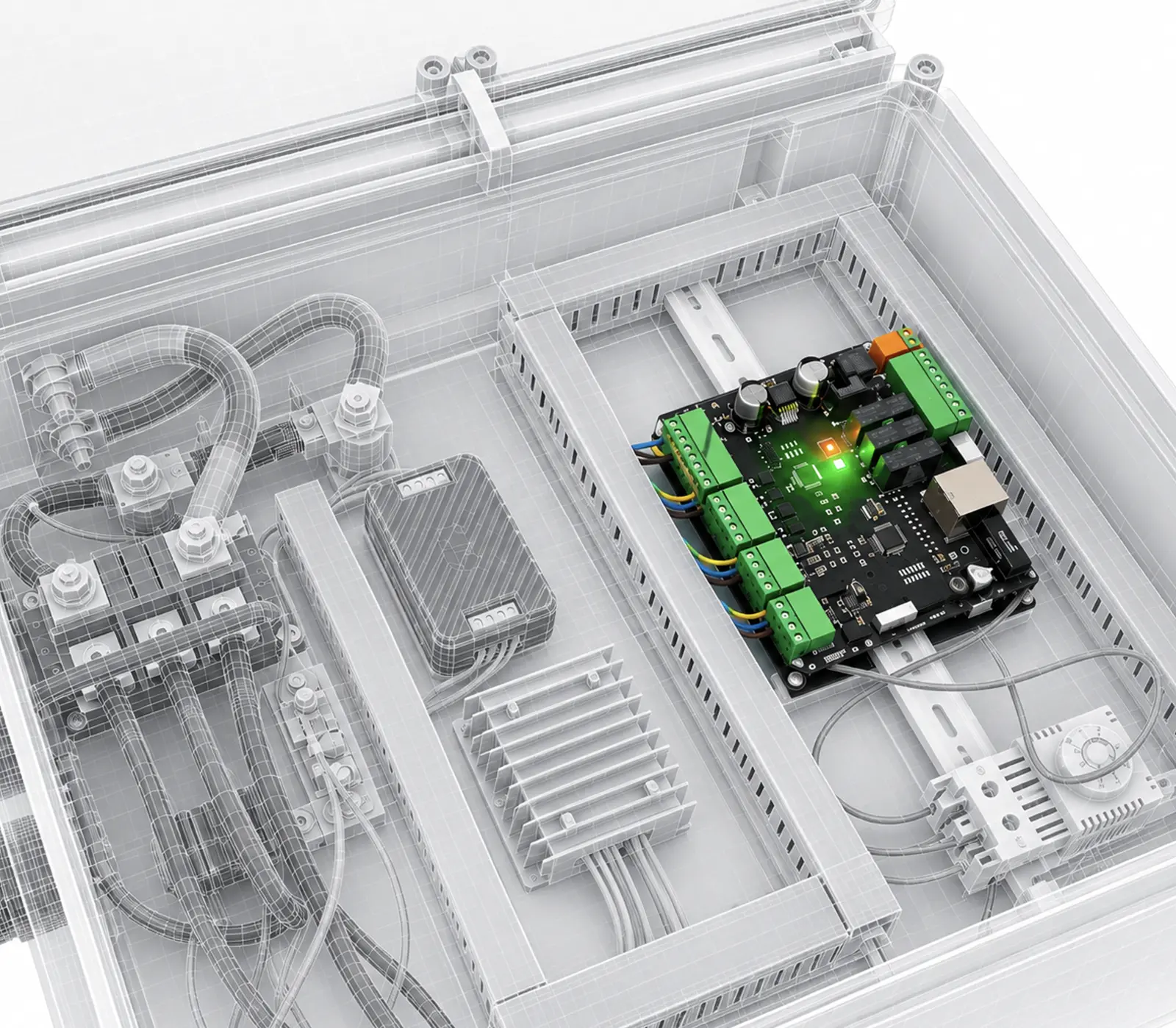

Integrated sensors continuously monitor the turbine and its environment for safe operation and maximum performance.
Power That Adapts to Real-World Conditions
- Cut-in Wind Speed3 m/s
- Rated Wind Speed~13 m/s
- Cut-out Wind Speed15 m/s
- Survival Wind Speed37.5 m/s
*Actual energy yield depends on wind distribution, tower height, turbulence, air density and installation conditions.
| FEATURE | WATECH 3000 | WATECH 5000 | WATECH 7000 |
|---|---|---|---|
| Rated Power | 3 kW | 5 kW | 7 kW |
| Rotor Diameter | 3.20 m | 3.84 m | 4.64 m |
| Cut-in Wind Speed | 3 m/s | 3 m/s | 3 m/s |
| Rated Wind Speed | ~13 m/s | ~13 m/s | ~13 m/s |
| Typical Application | Small Homes & Remote Sites | Homes, Farms & Small Businesses | Commercial & Industrial Sites |
| Annual Energy Range* | 1.5 – 3.5 MWh | 2.5 – 6.0 MWh | 3.5 – 9.0 MWh |
*Estimated annual energy range at average wind speed 5–6 m/s.
Engineered in Accordance with European Standards
Watech is designed and developed in accordance with relevant IEC and EN standards.
61400-2
12100
2014/35/EU
2014/30/EU
60204-1
6-1 / 6-2
All technical documents are available for engineers, installers and partners.
Download Center →Find the Right Watech Solution for Your Project
Our engineering team is ready to help you design the best configuration based on your wind conditions, energy needs and installation requirements.
